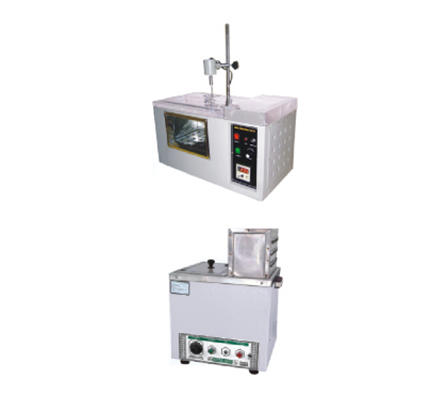

Description
- Small or Large capacity tank.
- Heater element. Top cover & other walled parts with 304 grade S. Steel for years of Life & ease of daily clean.
- S. Steel 304 grade perforated Diffuser plate.
- Drain Plug made of Brass duly Nickled on the back of the Bath
- Full feature with Digital Temp. Controller / Indicator & Microprocessor Based PID Temperature Controller (on customer request)
- With 1/20 HP High speed motor with Regulator or 1/70 HP Pump Stirrer with steel shaft for better Circulation.
- Stability up to 0.5°C or better.
- Better Mineral/Glasswool Insulation to keep surface Temp. comfortable.
- Sealed glass window / Toughened glass at front for observation of material.
- Optional: Arrangement for using the Bath for Abbe Appts. Butyrometer apparatus with cycle Nozzle & speed regulator.
Applications
For Medical, Agriculture, Research, Process control & Calibration for milk Testing Equipment.
Specifications
Model |
JDS 1.06 F |
JDS 1.06 G for Abbe Water Bath Butryometer Appts. |
| Capacity “L” | 28 Ltrs. | 4 Ltrs. Approx |
| Heater Wattage “W” | 2.0 KW | 500 Watts |
| Shelves/ Diffuser Plate | 1 | 1 |
| Dimensions (mm) | 430 x 240 x 265 | 300 x 250 x 175 |
| Bath Opening | S.S Plain Lid | S.S Plain Top Cover & Lid |
* Dimensions are expressed in (Width x Depth x Height)
Technical Parameters
| Control Panel: | Mains & Load Indicator, Mains Switch & Motor Switch, Temperature Controller |
| Temperature Range: | Ambient to 95 °C |
| Temperature Stability: | +-0.5°C or better |
| Housing Material: | CRC / Mild Steel Sheet with Powder Coated |
| Optional: | Outer body of S.S. 304 grade also can be made on customer demand Interior Tank S.S 304 grade Tank duly Sealed (Leak Proof) |
| Interior Tank: | S. Steel 304 grade water Tank duly sealed leak proof |
| Insulation: | Glasswool/ Mineral Wool |
| Power Consumption: | 220/230V, AC Supply +- 10% 50Hz |
| Duty Cycle: | Continuous ( Do check water level as per test requirement ) |
| Digital Resolution: | 0.1°C |
| Digital Sealing: | 0.1°C |
