Description

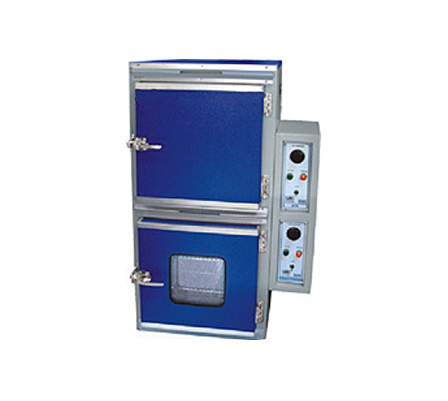

- Precise Hot Air Drying & Sterilization & Incubation in one chamber
- Two door i.e. one for Oven & One Incubator in single body
- Unique design of Ventilation keeps the surface of Instruments from being burnt even when the equipment Temperature maintained at 150 /200°C
- Polish 304 grade Stainless Steel Sheet Corrosion resistant long life having adjustable shelves to make more space for different height
- Kanthal super quality Air Heater duly embedded on the side & bottom for accuracy
- Best quality Bi-Metallic Hydraulic Thermostate / Full feature Temperature Controller (On Customer Request)
Applications
For Storage of pharmaceutical Agriculture, Sterilization Food & Medical Industries, Bio Tech requiring controlled Temperature above ambient
Specifications
| Model | JDS 1.40 | JDS 1.40 A |
| Capacity (Ltrs.) | 28 Ltrs. | 45 Ltrs. |
| Interior (mm) | 300 x 300 x 300 mm | 350 x 350 x 350 mm |
| Heater Wattage “W” | For Oven 1.0 KW For Incubator 450W |
For Oven 1.0 KW For Incubator 450W |
| Shelves | 1/2 | 1/2 |
Technical Parameters
| Control Panel: | Mains & Load Indicator, Temperature Controller, Main Switch |
| Optional: |
|
| Temperature Range: | For Oven Ambient to 250°C +- 1°C , Controlled from 60°C – 250°C For Incubator 70°C +- 1°C |
| Housing Material: | CRC/ MS Sheet Duly Powder Coated. Double Colour Gate/ Top Grill |
| Power Consumption: | 220/ 230V AC Supply 50 Hz Single Phase |
| Duty Circle: | Continuous |
