Description
- Better Sunmica & Plywood duly varnished duly painted Excellent wooden & Castor wheel for easy movement.
- Silent Air Blower unique design of Circulation for uniform air movement.

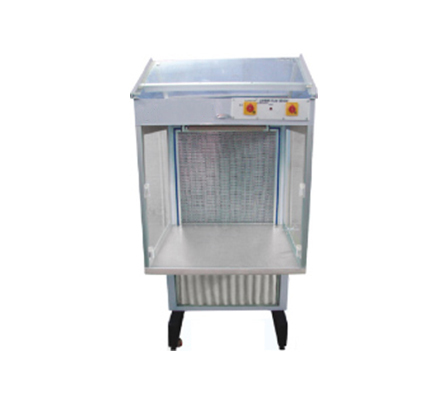

- A Horizontal uni flow clean bench has an open work table featuring a reliable & easy control.
- Low noise & low vibrations motor is adopted for, the speed can be adjusted step by step, The thin switch on panel make a reliable & easy control.
- The work table pattern is made of S. Steel sheet nice & durable. The external panel is finished with sunmica sheet nicely fixed.
- All S. Steel body S. S. frame & S. S. Top of 304 grade available in all the size (On customer request)
- Full feature Hepa Filters, Pre-filters comprising of non-woven micro fibre glass pleated media, pleats are separated by corrugated Alum. Foil separators, HEPA filters are protect by plastic grill.
- The side panels are made of good quality Thick Perspex sheet duly framed in anodized Alum.
- Working Bench is fitted with Fluorescent Light & UV Germicidal light having separate control in front.
- Voltage required 220/230V AC Supply 50 HZ
Applications
Extensively used in Industries as electronics, Bio Tech, Precision Incubation, Pharmacy etc. to provide clean work environment
Specifications
| Model | JDS 1.25 | JDS 1.25 A | JDS 1.25 B | JDS 1.25 C |
| Interior ft. | 2′ x 2′ x 2′ | 3′ x 2′ x 2′ | 4′ x 2′ x 2′ | 6′ x 2′ x 2′ |
| No. HEPA Filters | 1 No. | 1 No. | 1-2 | 2 |
| Pre-Filter | 1 | 1 | 1-2 | 2 |
| Qty. of Fluorescent Tube | 1/2 | 1/2 | 1-2 | 2 |
| No. of UV Tube | 1 | 1 | 1 | 1 |
| Motor & Blower | 1 & 2 Blower | 1 & 2 Blower | 1 & 2 Blower | 2 & 4 Blower |
Vertical Model Laminar Air Flow Bench : All above size available A Vertical uniflow clean Bench has a close worktable, Preventing the Air from coming in all other specification i.e. size, No. of Hepa Filters, UV light, Pre Filter motor & Fluorescent Tube remains same as in horizontal model.
Optional :
- Digital Temp. Controller if required ( on customer request)
- Sunmica Top instead steel of S. S. Top, All S.S. Body on customer request.
